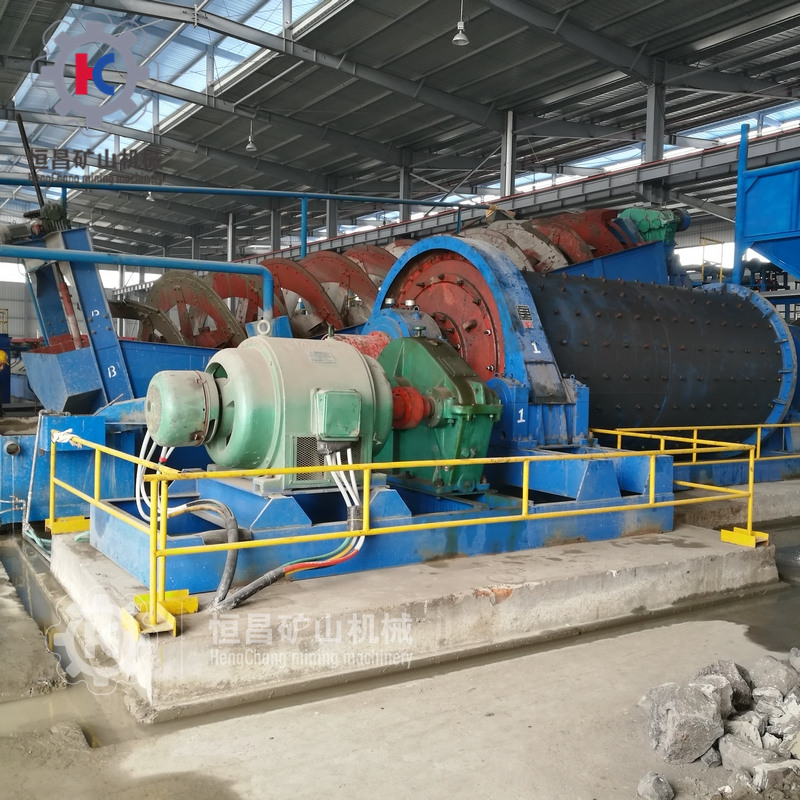

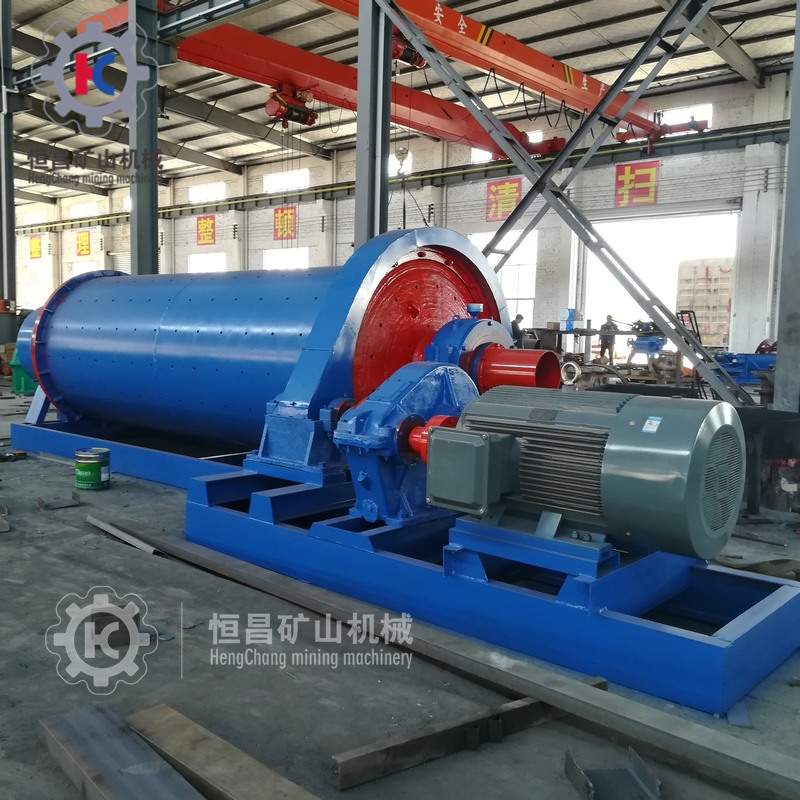

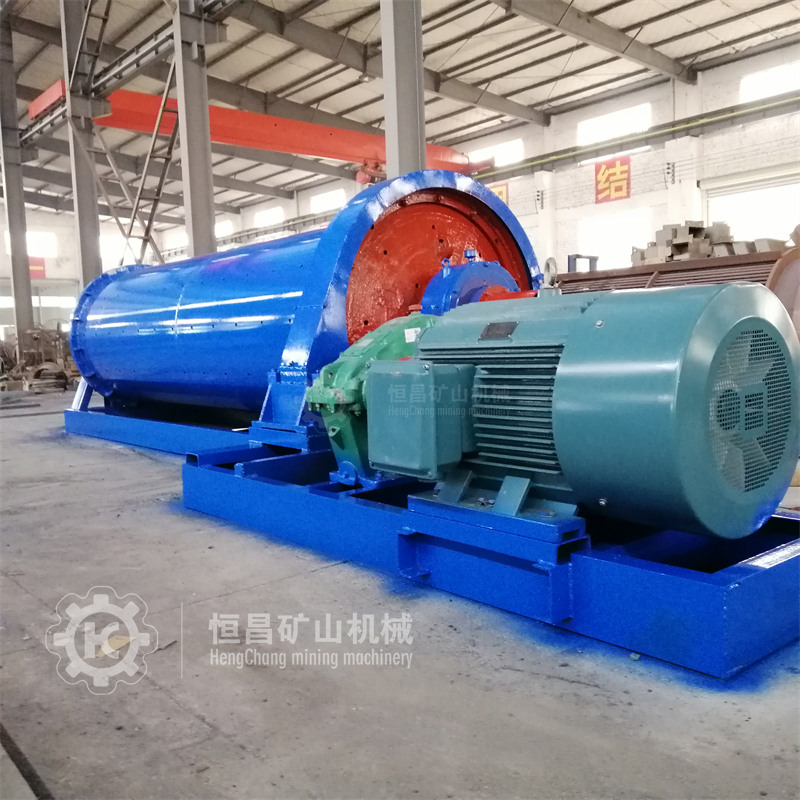

2MGG型管磨機 Tube Mill
管磨機具有生產能力高、對物料適應性強、破碎比大等特點,為滿足市場需求,又開發設計與生產制造了多種規格的大型管磨機,具有標準化、通用化、系列化的特點,產品遠銷國內外, 現已滿足日產5000t水泥生產線以下的原料與熟料生產的需要。
have characteristics of high productive capacity, strong adaptability to materials, and big crushing ratio. To meet the need of the market, it designed and manufactured large tube mills of many specifications which are standardized, universalized, and serialized. The products are sold at home and abroad which have now met the requirements of manufacturing 5000 tons of raw materials and clinker on the cement production line.
技術參數
型號規格 | 水泥 | 生料 | 筒體直徑 | 筒體長度 | 筒體工作轉數 | 傳動方式 | 電機 | ||
功率 | 轉速 | 電壓 | |||||||
t/h | t/h | m | m | r/min | r/min | V | |||
2MGG-B1806 | 6 | 8.5 | 1.83 | 6.4 | 23.9 | 邊緣 | 2kW10 | 735 | 380 |
2MGG-B1807 | 7.2 | 10 | 1.83 | 7 | 23.9 | 邊緣 | 245 | 735 | 380 |
2MGG-Z2206 | 10~11 | 18~19 | 2.2 | 6.5 | 20.79 | 中心/邊緣 | 400 | 500 | 6000/10000 |
2MGG-Z2207 | 20~27 | 35~37 | 2.6 | 7.9 | 19.5 | 邊緣 | 630 | 167 | 6000/10000 |
3MGG-B2610 | 17~18 | 27~30 | 2.6 | 10 | 19.5 | 邊緣 | 630 | 738 | 6000/10000 |
3MG-Z2613 | 28~29 | 43~50 | 2.2 | 13 | 21.6 | 中心/邊緣 | 1000 | 167 | 6000/10000 |
3MGN-Z3009 | 38 | 3 | 9 | 17.52 | 中心 | 1250 | 742 | 6000/10000 | |
3MGN-Z3011 | 33 | 3 | 11 | 17.65 | 中心 | 1450 | 741 | 6000/10000 | |
3MN-B3012 | 50 | 3.0 | 12 | 17.6 | 邊緣 | 800 | 745 | 6000/10000 | |
MNG-Z3288 | 75 | 3.2 | 8.8 | 17.7 | 邊緣 | 1250 | 741 | 6000/10000 | |
MNG-Z3510 | 80 | 3.5 | 10 | 16.5 | 中心 | 1800 | 743 | 6000/10000 | |
MNG-Z3511 | 60~62 | 3.5 | 11.5 | 16.5 | 中心 | 2500 | 740 | 6000/10000 | |
2MGN-Z3813 | 65 | 3.8 | 13 | 16.3 | 中心 | 2800 | 742 | 6000/10000 | |
2MGN-Z4213 | 75/150 | 4.2 | 13 | 16 | 中心 | 3550 | 742 | 6000/10000 | |
2MGN-Z5015 | 160 | 5 | 15 | 14.5 | 中心 | 6300 | 742 | 6000/10000 |
