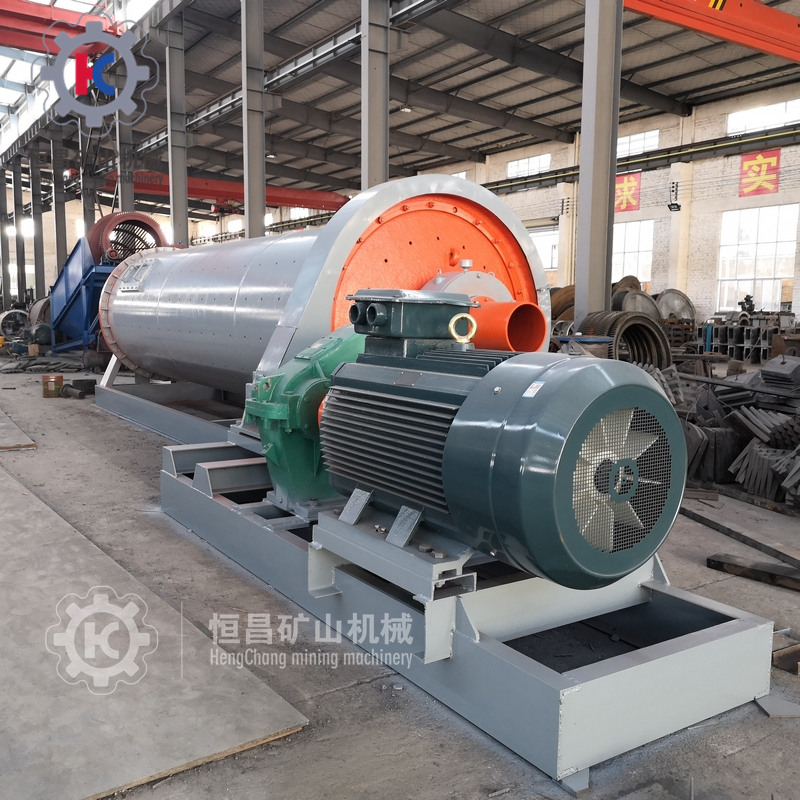

SKMQR型潤磨機 Damp Mill
潤磨機是球磨工藝中的主要設備,它處理含水量在8-13%的物料,使物料充分混合和細化,增大物料的比表面積,使用潤磨機可以縮短球團礦的制作工藝、降低設備能耗、提高團礦質量和金屬回收率、改善勞動條件和環保條件等。潤磨機與球磨機的基礎上有三個主要差異:強制給料、周邊排礦、橡膠襯板。
Damp mills are the main equipment in ball milling technology. They handle materials with water content of 8% to 13% to fully mix and thin materials and increase specific surface area of materials. Damp mills can shorten the fabrication process of pellet ores, reduce energy consumption of equipment, improve the quality of agglomeration and metal recovery rate, as well as improve labor conditions and environmental protection conditions. There are three main differences between the damp mills and ball mills: forced feeding, peripheral discharging, and rubber lining board.
型號規格 | 單位 | SKMQR2745 | SKMQR3254 | SKMQR3562 | |
圖號 | K2128 | K2129 | |||
筒體內徑 | mm | 2700 | 3200 | 3500 | |
筒體工作長度 | mm | 4500 | 5400 | 6200 | |
筒體有效容量 | m3 | 23.5 | 39.5 | 55.6 | |
****裝載量 | 物料 | t | 3.8 | 6 | 8.7 |
鋼球 | t | 27.30 | 44 | 64 | |
筒體工作轉數 | r/min | 17.86 | 16.5 | 15.47 | |
主電動機 | 型號 | YR4503-8 | YR5003-8 | YTM5602-6 | |
功率 | kw | 400 | 630 | 1000 | |
轉速 | r/min | 735 | 740 | 993 | |
電壓 | v | 6000 | 6000 | 6000 | |
主減速成器 | 速比 | 4.5 | 4.6 | 6.74 | |
輸入轉速 | r/min | 735 | 740 | 993 | |
慢速驅動裝置 | 電機參數 | Y160M2-8 5.5KW,380V 730 r/min | Y160L-8 11KW,380V 970 r/min | Y180L-8 11KW,380V 730 r/min | |
減速機速比 | 400 | 500 | 355 | ||
輸出轉速 | r/min | 1.8 | 1.94 | 2.056 | |
螺旋輸料裝置 | 電機功率 | kw | 11 | 18.5 | 18.5 |
電機電壓 | v | 380 | 380 | 380 | |
電機轉速 | r/min | 1500 | 1000 | 1000 | |
減速機輸出轉速 | r/min | 25.4 | 23.25 | 23.25 | |
速比 | 59 | 43 | 43 | ||
機器外型尺寸 | mm | 13400×7250 ×5700 | 15473×7707 ×6280 | ||
機器重量(不含主電機、電控) | t | 65 | 122 | 133 | |
產量 | t/h | 30 | 50 | 70 |
