磨片機、拋光機技術參數<br> Technical Paramete

磨片機、拋光機適用于科研院校、廠礦試驗室試樣切割后研磨拋光、試樣光譜分析前準備工作。結構有自動除塵、自動回收研磨砂等特點。

They serve polishing after sample cutting and preparing before sample spectroscopic analysis in the laboratory of institutes, factories and mines. They can automatically remove dust and recover grinding sand and so on.

磨片機、拋光機技術參數 Lapping machine and polishing machine

型號規格Model	磨盤直徑 grinding disc diameter	轉速 Rotational speed	功率 Power	外形尺寸 Overall dimension	質量 Weight
型號規格Model	mm	r/min	kw/v	mm	kg

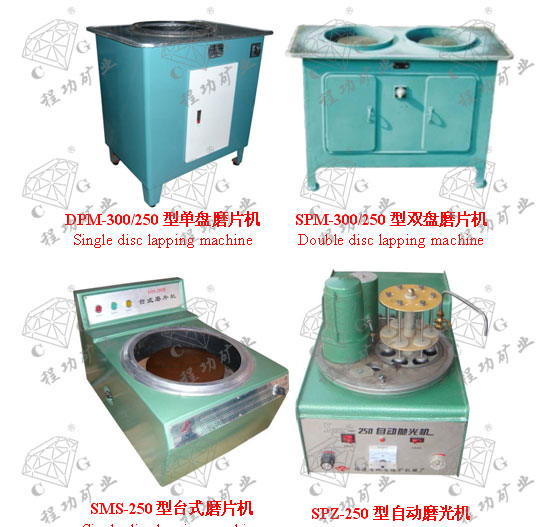

SMS-250臺式磨片機 Table lapping machine	Φ250	500-1000	0.6/380	446×635×407	64
DPM-250單盤磨片機 Single disc lapping machine	Φ250	800-1200	1.1/380	820×610×980	160
DPM-300單盤磨片機 Single disc lapping machine	Φ300	800-1200	1.1/380	820×610×980	164

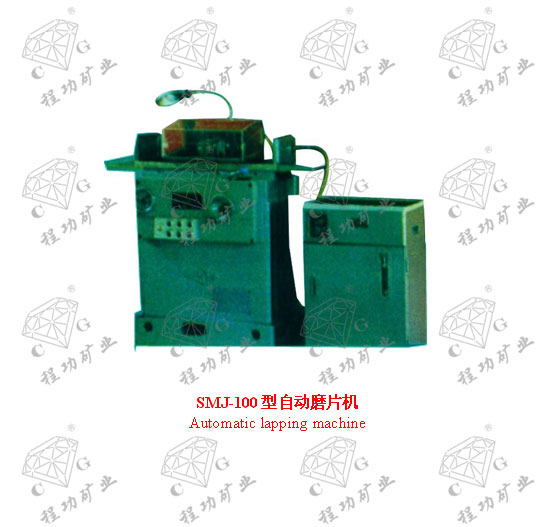

SMJ-100自動磨片機 automatic lapping machine	Φ100	4800	1.1/380	1130×860×1130	550
SPM-250雙盤磨片機 Double disc lapping machine	Φ250	800-1200	1.1/380	1296×606×946	210
SPM-300雙盤磨片機 Double disc lapping machine	Φ300	800-1200	1.1/380	1296×606×946	210
SM400Ⅰ雙盤磨樣機 Double disc polishing machine	Φ400	1400-2850	1.5/380	1000×500×800	180
SM400Ⅱ雙盤磨樣機 Double disc polishing machine	Φ400	1400-2850	1.5/380	1000×500×900	175
SM200自動雙盤磨樣機 Automatic double disc polishing machine	Φ200	1400	1.5/380	1296×606×946	90
SKM-160自動磨塊機 Sutomatic polishing machine	Φ160	3200	1.1//380	1660×990×1210	1180
SPT-250調速拋光機 Polishing machine	Φ250	0-1000	0.355/220	600×360×356	40
SPZ-250自動拋光機 Automatic polishing machine	Φ250	0-1000	0.355/220	600×360×438	50
MPW-150萬能磨拋機 Polishing machine	Φ150	0-500	0.355/220	600×360×356	50

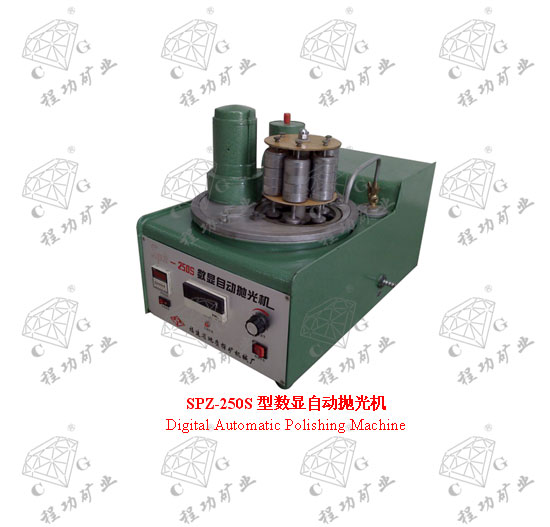

SPZ-250S數顯自動拋光機 Digital Automatic Polishing Machine	Φ250	0-1000	0.355/220	600×360×356	50
